Featuring a vibrant 7-inch OLED screen with vivid colours


Available 08/10/2021


With Nintendo Switch - OLED Model, enjoy your favourite games anytime, anywhere, featuring a vibrant 7-inch OLED screen with vivid colours

Play video


Vivid colours


7-inch display

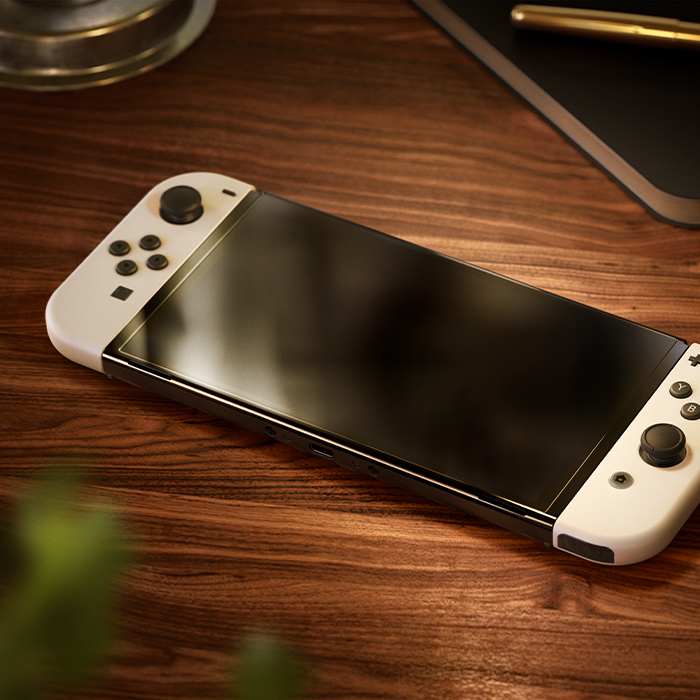

Nintendo Switch - OLED Model includes a vibrant 7-inch OLED screen with a slimmer bezel. The large screen's vivid colours and deep contrast deliver a rich handheld and tabletop gaming experience, bringing games to life whether you're racing at top speed or squaring off against enemies.


Nintendo Switch - OLED Model


Nintendo Switch

What is an OLED screen?

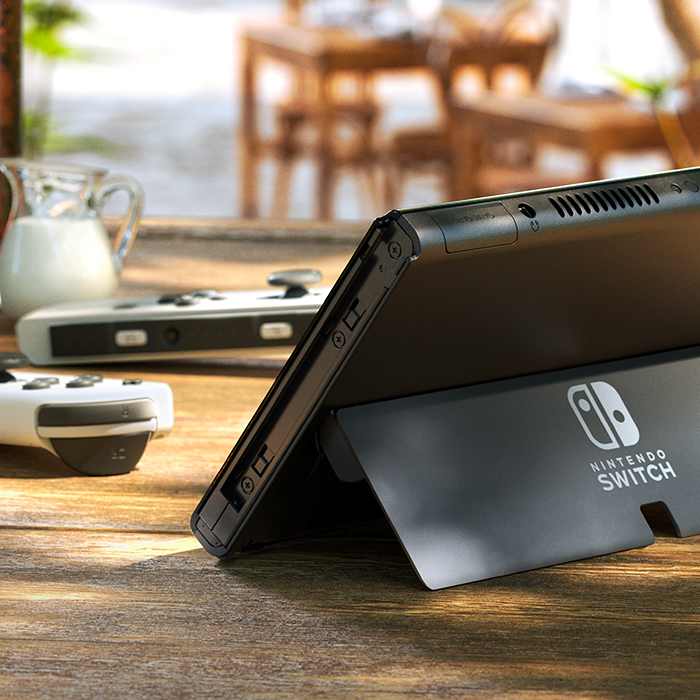

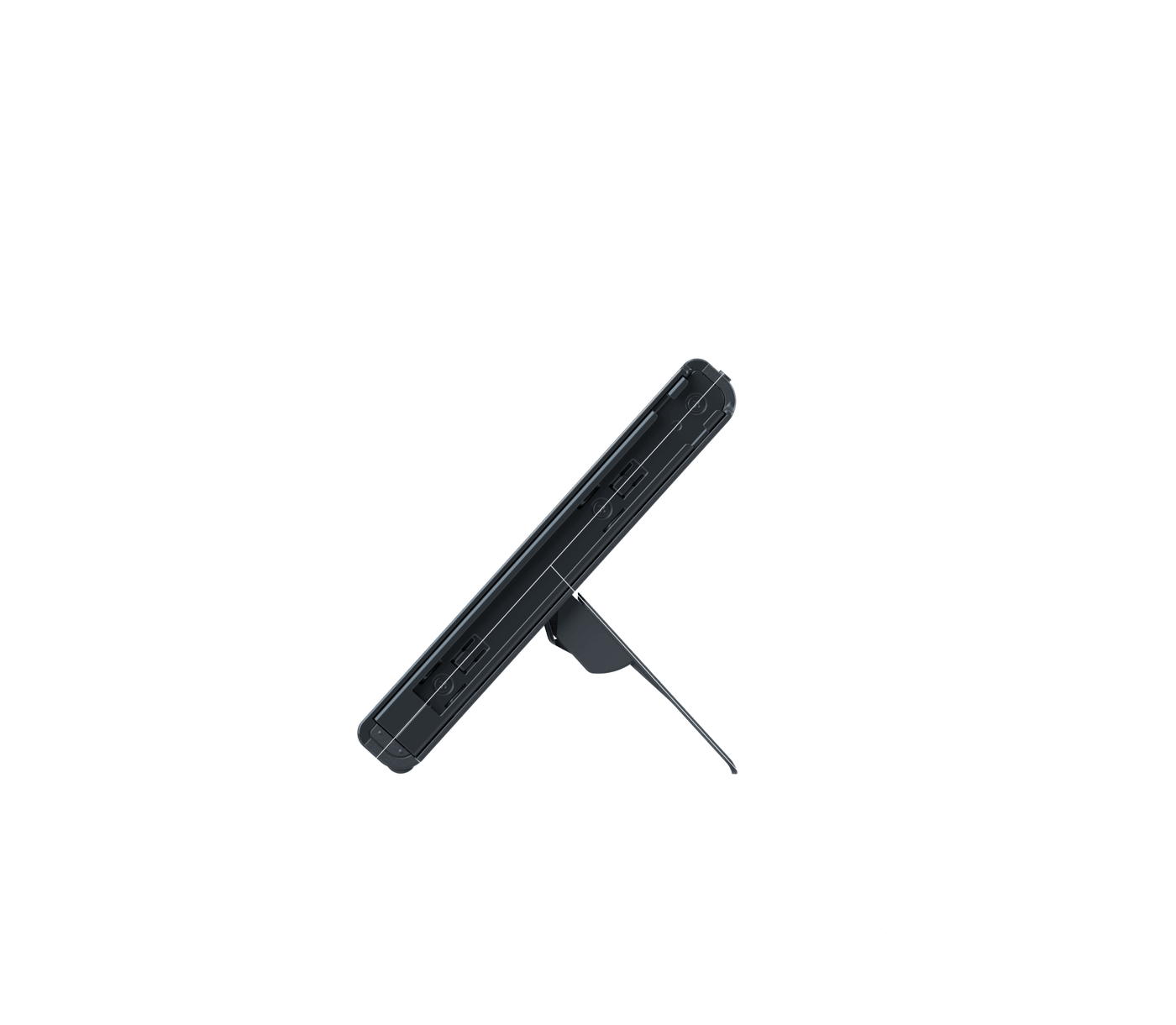

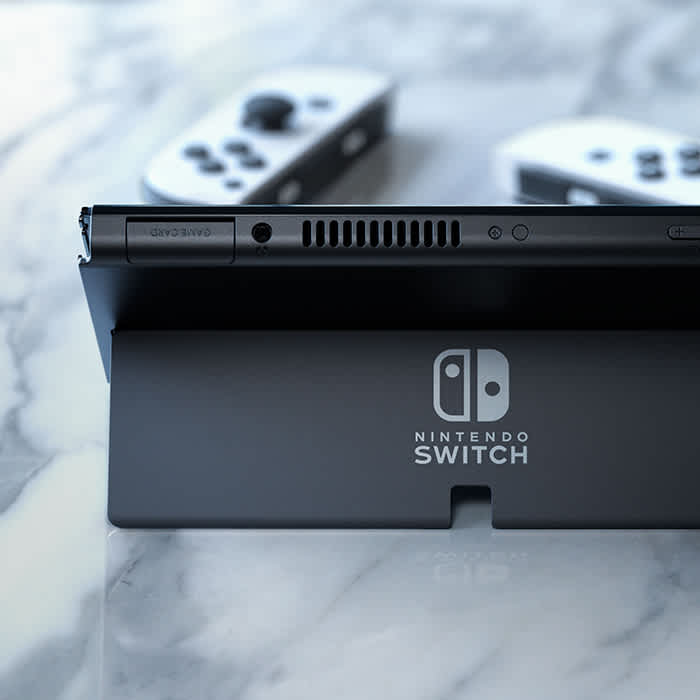

Wide adjustable stand


Enjoy tabletop mode at your preferred viewing angle

Flip out the stand and hand a controller to another player to share the screen and enjoy competitive or co-operative multiplayer, anytime and anywhere.

Nintendo Switch - OLED Model's wide adjustable stand can be set to your preferred viewing angle for comfortable gameplay in tabletop mode.

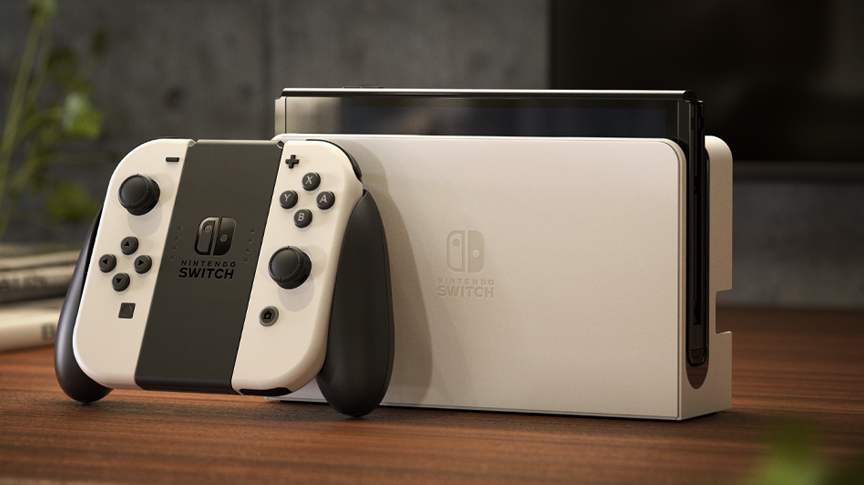

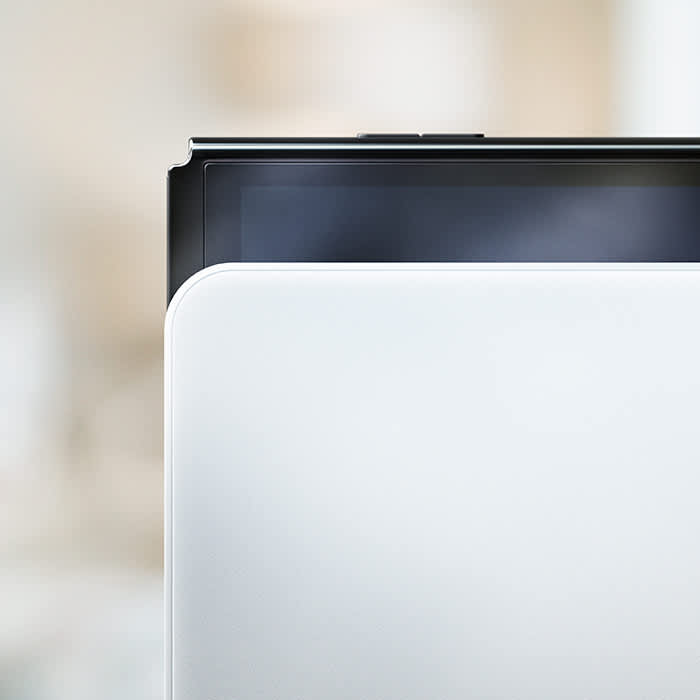

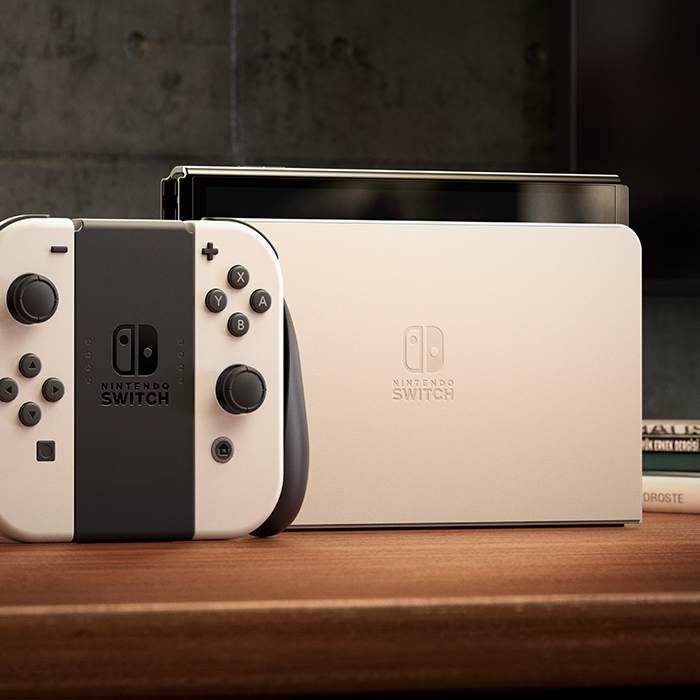

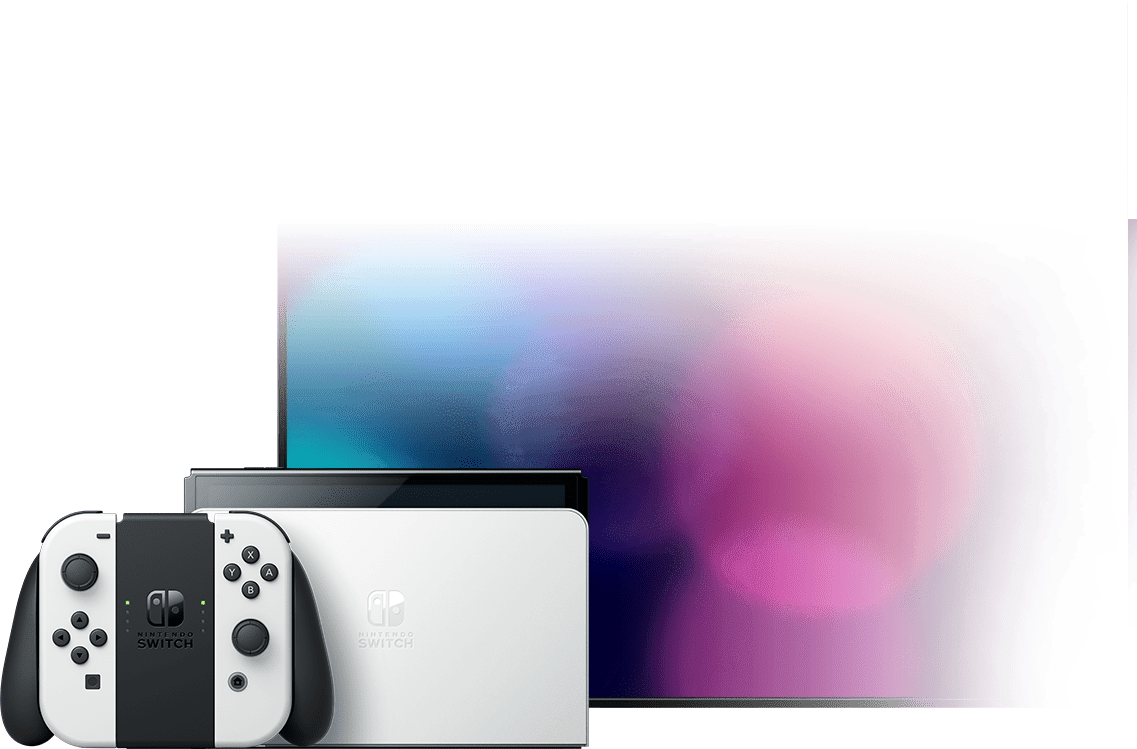

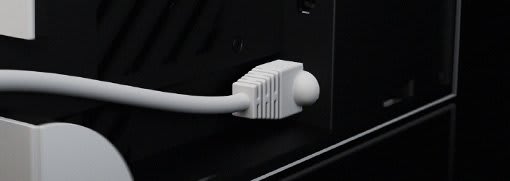

New dock with wired LAN port


The dock included with Nintendo Switch - OLED Model features two USB ports, an HDMI port for connecting to a TV, and a new wired LAN port, allowing for more stable online play when playing in TV mode.


64 GB internal storage

Nintendo Switch - OLED Model has 64 GB of internal storage. You can expand the available space using a compatible microSD card (sold separately). Download your favourite games to play them anytime and anywhere.

For more information on compatible microSD cards, please visit our support section.


Onboard speakers with enhanced audio

Enjoy clear sound when playing in handheld or tabletop modes.

Nintendo Switch features


Play anytime, anywhere, with anyone

Three play modes

Nintendo Switch can transform to suit your situation, so you can play the games you want, no matter how busy life may be. Enjoy games anytime, anywhere, with anyone!


01

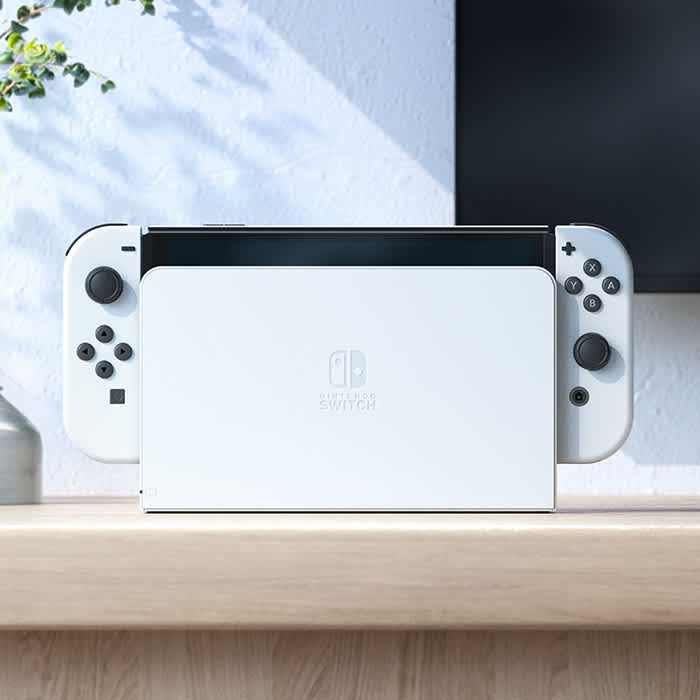

TV mode


Gather around a big screen and enjoy gaming with a crowd.

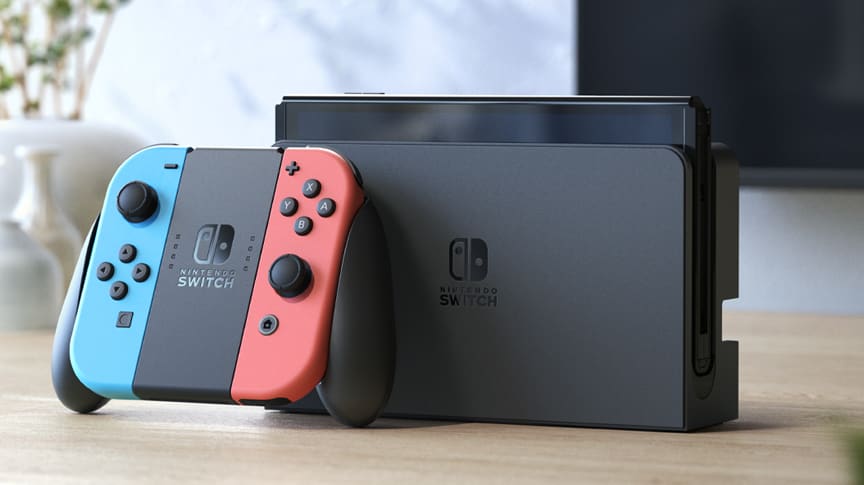

Dock your Nintendo Switch to enjoy HD gaming on your TV.


02

Tabletop mode


Share the screen, share the fun.

Flip the stand to share the screen, then share the fun with a multiplayer game.


03

Handheld mode


Carry around a large, beautiful display anywhere you go.

Pick it up and play with the Joy-Con controllers attached. Enjoy playing solo, or play together with friends locally or online.

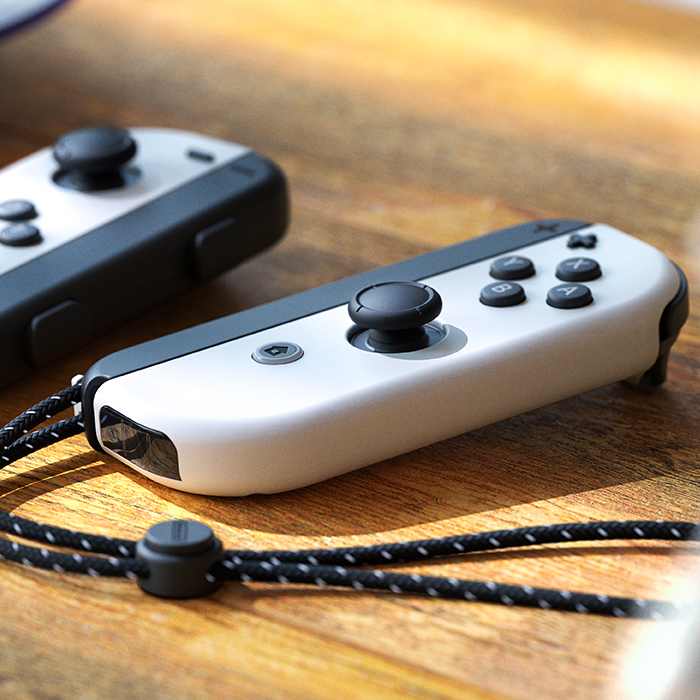

Controllers

Share the fun with Joy-Con

Nintendo Switch has a controller on each side of the console that function together: the Joy-Con. Hold them vertically, horizontally, or share one with a friend to enjoy competitive or co-operative gameplay anytime, anywhere.


Local co-op

Play on the big screen at home with friends.*

*Additional controllers (sold separately) may be required.

Local wireless

Players can sync together up to eight Nintendo Switch, Nintendo Switch - OLED Model or Nintendo Switch Lite consoles to play competitive and co-operative multiplayer games.

Online multiplayer

With a Nintendo Switch Online membership, you can play with friends far away and players around the world, access a growing library of classic NES and SNES games with added online features, enjoy exclusive offers such as TETRIS® 99 and Nintendo Switch Game Vouchers, and more!

Find out more about Nintendo Switch Online

Release date: 08/10/2021


Nintendo Switch - OLED Model White

See contents


Nintendo Switch - OLED Model Neon blue/Neon red

See contents

Specifications

Nintendo Switch - OLED Model console

  Nintendo Switch - OLED Model console
Size 102mm x 242mm x 13.9mm (with Joy-Con controllers attached)
Please note: 28.4mm at the thickest, from the tips of the analogue sticks to the ZL/ZR Button protrusions.
Weight Approx. 320g
(With Joy-Con controllers attached: 420g)
Screen Capacitive touch screen / 7-inch OLED / 1280x720 resolution
CPU/GPU NVIDIA customised Tegra processor
System memory 64 GB

You can increase your console's storage with compatible microSD cards (sold separately). For more information on compatible microSD cards, please visit our support section.

Please note: a portion of the internal memory is reserved for use by the system.
Communication features Wireless LAN (IEEE 802.11 a/b/g/n/ac compliant) / Bluetooth 4.1
In TV mode, it's also possible to use a wired LAN connection.
Video output Maximum resolution: 1920x1080, 60 fps
Please note: output via HDMI cable in TV mode. In tabletop mode and handheld mode, the maximum resolution is 1280x720, which matches the screen resolution.
Audio output Supports linear PCM 5.1ch
Please note: output via HDMI cable in TV mode.
Speakers Stereo
USB terminal USB Type-C terminal
Used for charging or for connecting to the Nintendo Switch dock.
Audio jack 4 pole stereo 3.5mm mini plug (CTIA standard)
Please note: Nintendo cannot guarantee functionality with all products.
Game card slot Exclusively for Nintendo Switch game cards.
microSD card slot Compatible with microSD, microSDHC and microSDXC memory cards. Please read our microSD Card FAQ for more information on compatible microSD cards.

Please note: an update via an internet connection is required to use microSDXC memory cards.
Sensors Accelerometer / gyroscope / brightness sensor
Operating environment Temperature: 5 - 35°C / Humidity: 20 - 80%
Internal battery Lithium ion battery / battery capacity 4310mAh
Please note: the internal battery cannot be removed. If the battery needs to be replaced, it can be replaced for a fee via Nintendo Customer Support.
Battery life Approx. 4.5-9 hours

The battery life will depend on the games you play. For instance, the battery will last approximately 5.5 hours for The Legend of Zelda: Breath of the Wild.
Energy consumption TV mode

Active gaming: 6 W

Streaming media (HD): 5 W

HOME Menu: 3 W

Sleep Mode (Wi-Fi connected; wired LAN connection not maintained): 0.3 W (maximum 0.5 W)

Sleep Mode (wired LAN connection maintained): 2.2 W

Power off: 0.3 W (maximum 0.5 W)

Handheld mode

Active gaming: 4 W

Streaming media (HD): 3 W

HOME Menu: 2 W

Sleep Mode (Wi-Fi connected; wired LAN connection not maintained): 0.03 W

Power off: less than 0.01 W

Please note: the values have been rounded off to the nearest full value. There also may be some statistical variations on the energy consumption values displayed. The values could also change depending on the usage environment and conditions.
Charging time 3 hours approx.
Please note: this is the time taken to charge while the console is in sleep mode.

HOME Menu

From the HOME Menu, you can start games and select game settings. In addition to managing friends and user accounts, you can also change your system settings here.

Main features of the HOME Menu


News

The latest news about games will be delivered to your Nintendo Switch.


Nintendo eShop

Find and buy digital versions of full games and DLC.


Album

Easily take and save screenshots or video clips from select games using the Capture Button. Then view, edit and share to social networks from your album. You can also transfer them wirelessly to a smart device.


Nintendo Switch Online

Access a variety of Nintendo Switch Online services, read the the latest news about related titles, and check your membership status.

Q1. Can all Nintendo Switch titles be played on Nintendo Switch - OLED Model?

Nintendo Switch - OLED Model is compatible with the full library of Nintendo Switch games.

However, there may be differences in game experience with some of the Toy-Con accessories from the Nintendo Labo series, due to differences in console and screen size between Nintendo Switch - OLED Model and Nintendo Switch. There may also be games where the game experience may differ due to the new capabilities of the console, such as the larger screen size. For more information, please visit our support section.

Q2. Can the Nintendo Switch dock (with LAN port) also be used with Nintendo Switch?

Yes, the dock can be used, including the LAN port.

Please note: a system update may be required.

Q3. Can the Nintendo Switch dock be used with Nintendo Switch - OLED Model?

Yes, this is possible.

Please note: a system update may be required.

Q4. Can I use the Joy-Con controllers I currently have with Nintendo Switch - OLED Model?

Yes. The Joy-Con controllers included with Nintendo Switch - OLED Model are the same as the controllers currently available.

Q5. I’m thinking about buying a second Nintendo Switch family console. Can I share digital titles I’ve purchased or share my save data between Nintendo Switch - OLED Model, Nintendo Switch and Nintendo Switch Lite?

Please visit our support section for information on how to play your games on multiple consoles.

Q6. Can I continue to use accessories I’ve been using on Nintendo Switch with Nintendo Switch - OLED Model?

Yes, it's possible to use existing accessories on Nintendo Switch - OLED Model. See available accessories.


Nintendo Switch


Nintendo Switch

OLED Model


Nintendo Switch Lite

What is an OLED screen?

An OLED screen does not have a backlight like LCD screens, instead displaying images using light emitted by each individual pixel.

Deep blacks can be represented by turning a pixel's light off, allowing for higher contrast.
